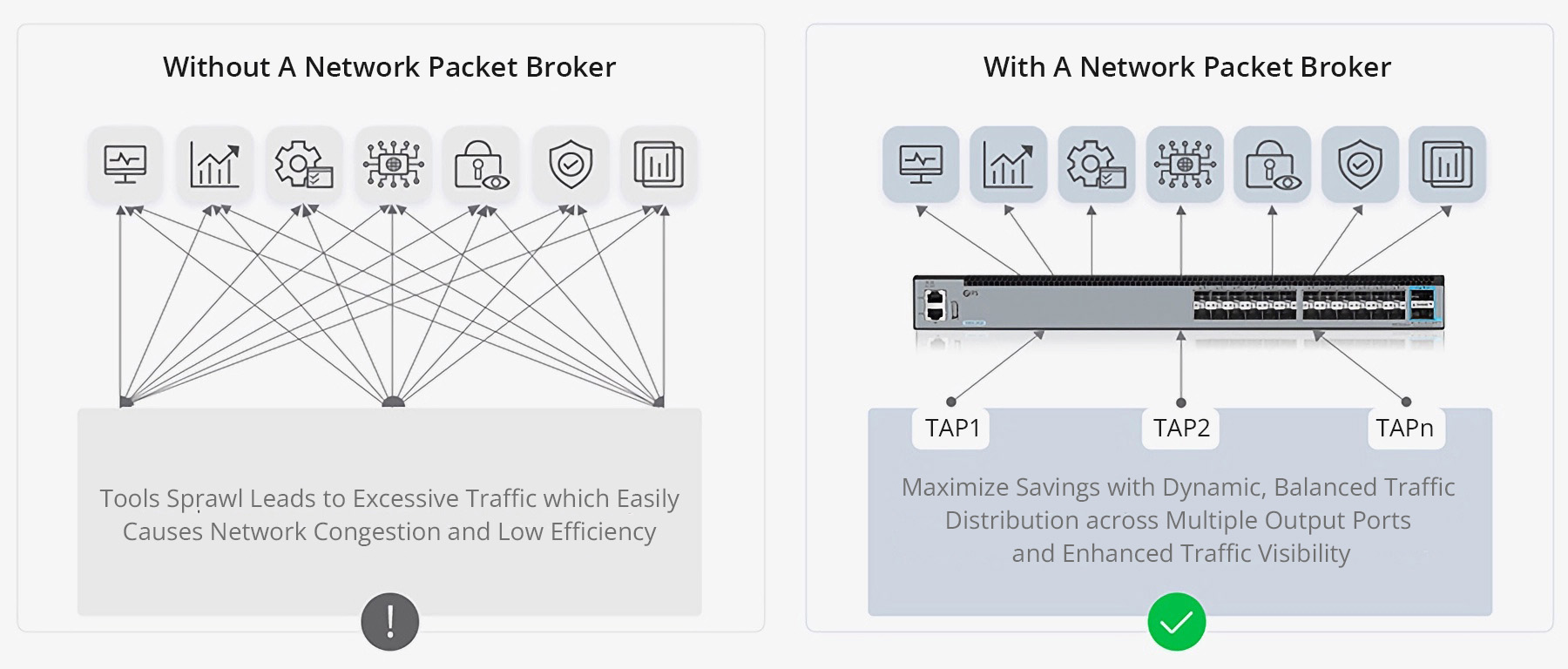

A Network Packet Broker (NPB) is a device that optimizes the flow of traffic between TAP and SPAN connections and network monitoring, security tools. The packet broker collects traffic from single or multiple network links, filtering and distributing each individual packet to the correct network monitoring tool by load balancing, which enhances the performance of network analysis and security tools.

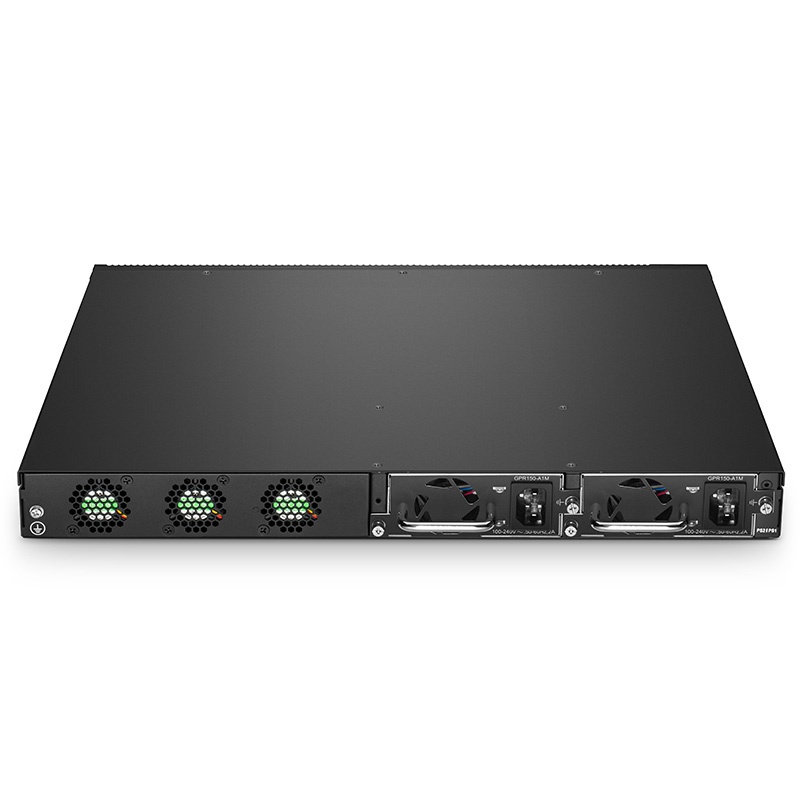

The FS T5850-48S8C Network Packet Broker(NPB) features 48 SFP+ (1/10 Gbps) and 8 QSFP28 ports (100 Gbps) providing aggregation, replication, filtering, load balancing and deduplication in very high bandwidth port monitoring and analysis scenarios.
Tài liệu
Tài liệu
Các tập tin hướng dẫn sử dụng...
Thông số kỹ thuật
Thông số kỹ thuật
Ports
48x 10G SFP+, 8x 100G QSFP28
Switching Method
Store and Forward/Cut Through
Switching Capacity
2.56 Tbps
Latency
660ns
Throughput
540Mpps
System Memory
2GB
CPU
SOC (Dual core/ARM A53)
Packet Buffer
9MB
Flash
8GB (eMMC)
Ingress Flow Entries
1800
Input Voltage
100-240VAC, 50-60Hz
Egress Flow Entries
253

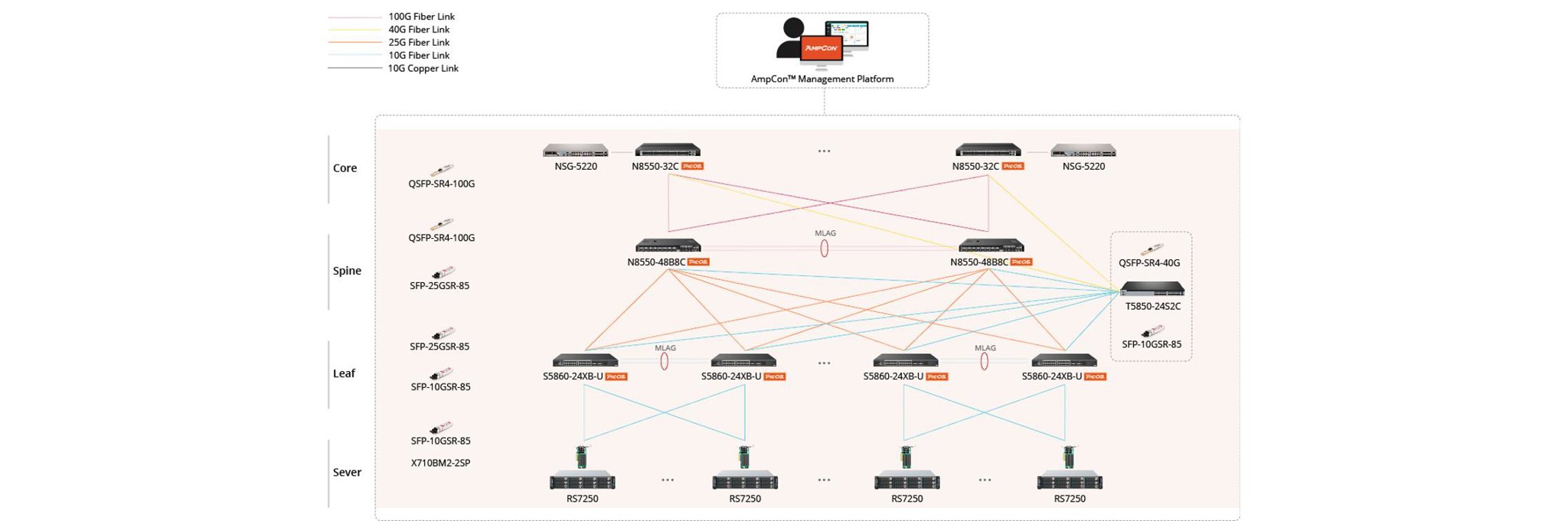

Network Visualization Solutions The NPB optimizes network monitoring by collecting and filtering traffic, improving performance, management, and security, while reducing downtime and costs.
Network Packet Brokers (NPB) Facilitate Visibility for All IT Operations Optimize the performance of network monitoring, analysis and security tools and offer visual solutions for SMEs and service providers.
